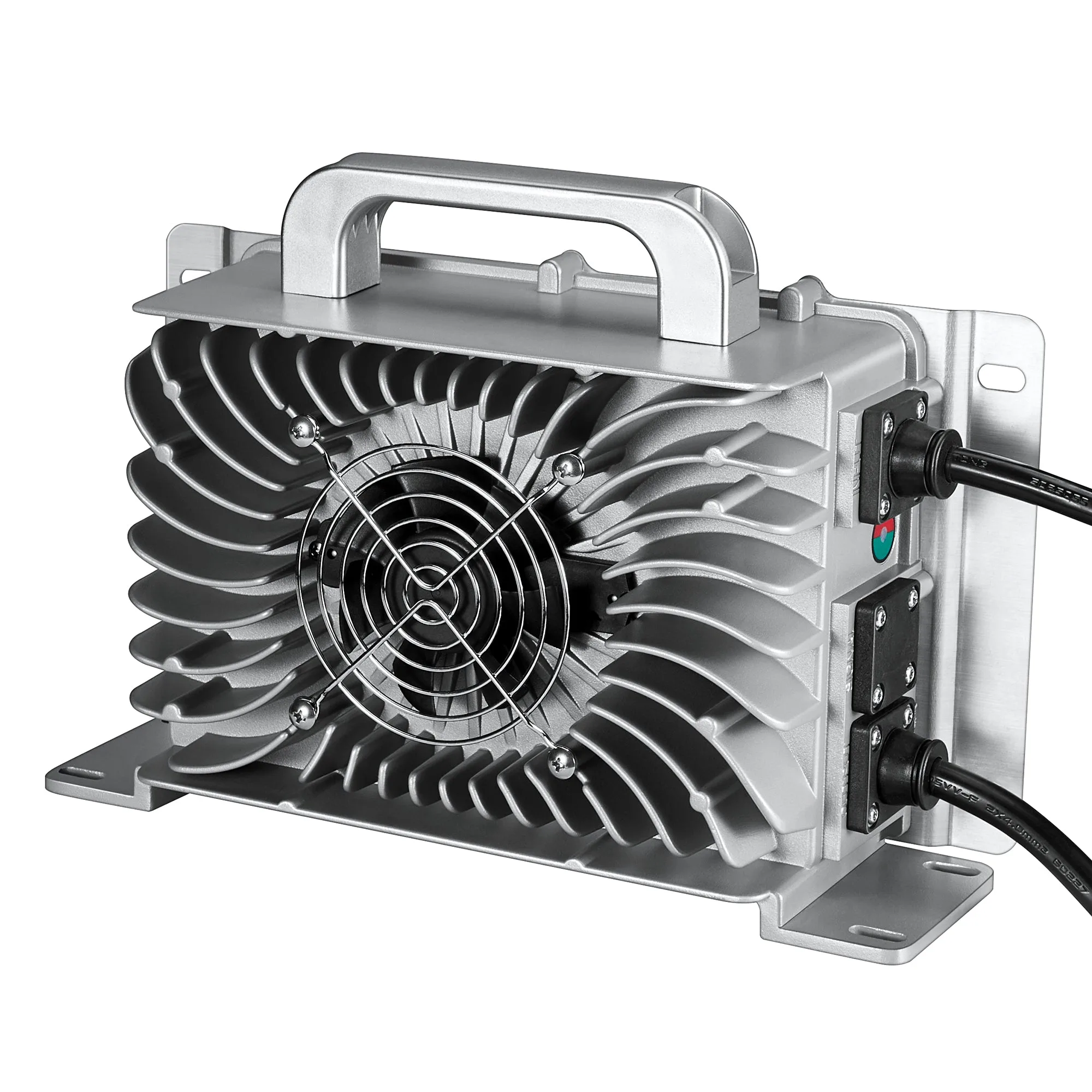

48V (57.6V) Waterproof LiFePO4 Charger | 20A / 25A, 100-240V AC, 8-in-1 Protection, Fan-Cooled
Kits & Bundles

48V (57.6V) Waterproof LiFePO4 Charger | 20A / 25A, 100-240V AC, 8-in-1 Protection, Fan-Cooled

SKU: RS-BC48C20
$319.99 / Each
Out of Stock

Features Fast & Efficient Charging 88-93% peak efficiency for quick, energy-efficient charging LiFePO4-optimized design extends battery lifespan and ensures stable long-term perfor

View Kit Bundles
🌾

Why Buy This from AOG

✓Authorized dealer — genuine product, backed by the manufacturer's warranty
✓Personal service from a small, family-run business that knows and serves the Plain & off-grid community — not a faceless call center
✓Chosen to last, not to be the cheapest — built for years of real use
✓Curated for true off-grid living, not stacked on a big-box shelf

Need something else too?

Solar Panels | Batteries | Inverters | Charge Controllers | Power Converters | DC-DC Chargers | Chargers | Solar Racking & Mounting | Wiring & Connectors | Off-Grid Appliances | Lighting & Accessories | Monitoring & Accessories | Parts & Repair | Misc | Power Controllers

Shipping Info
Weight: 3lb 13oz
Dimensions: 0.00" × 0.00" × 0.00"

Ships to the lower 48 states. See our Shipping & Returns policy before you buy.

Key Features

• 88-93% peak efficiency for quick, energy-efficient charging
• LiFePO4-optimized design extends battery lifespan and ensures stable long-term performance
• IP67 waterproof, dustproof, and shock-resistant die-cast aluminum housing
• 8-in-1 safety protection: overvoltage, overcurrent, short-circuit, reverse polarity, overheating, undervoltage, auto-shutoff, and battery activation
• FCC, CE, and RoHS certified for safety, performance, and environmental compliance.

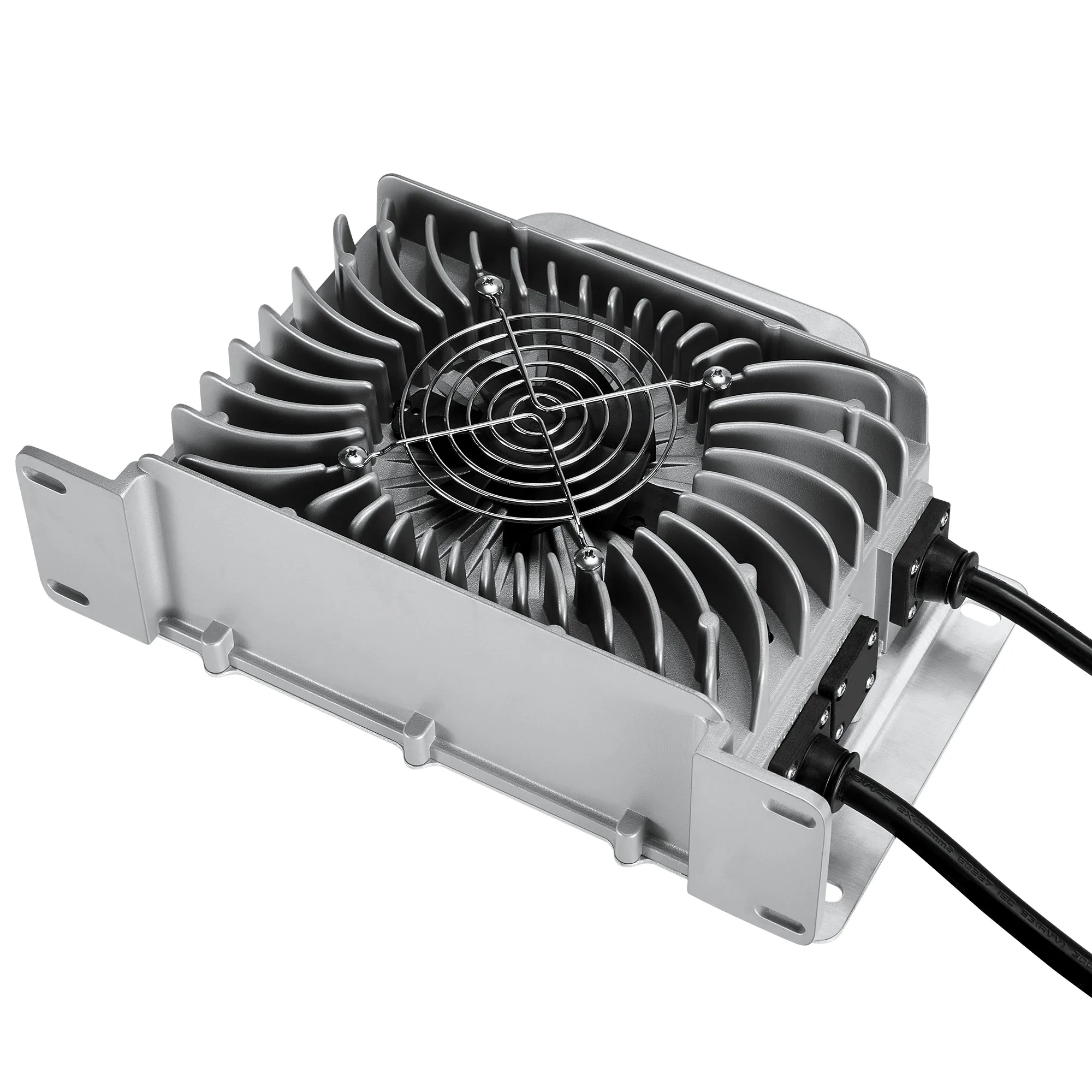

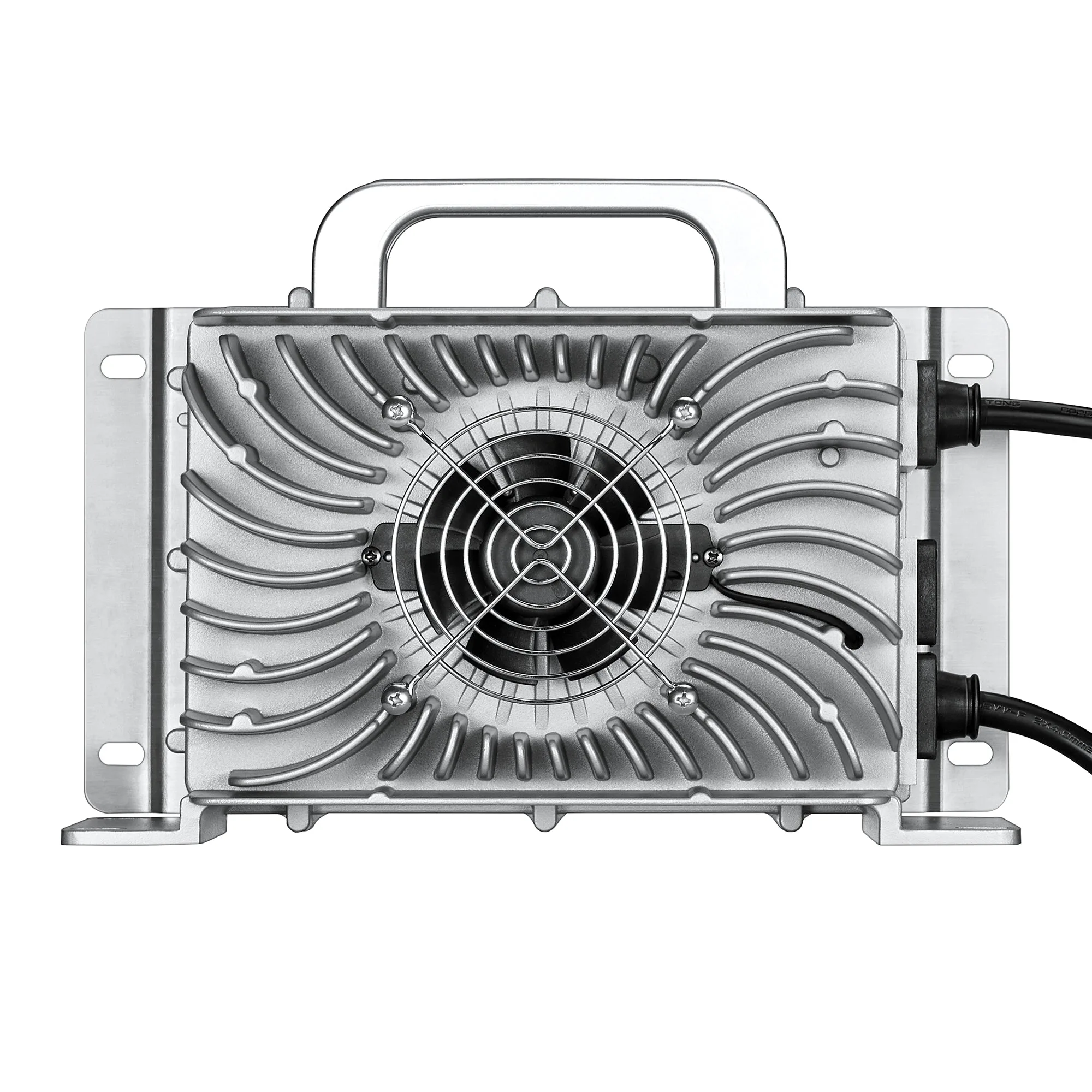

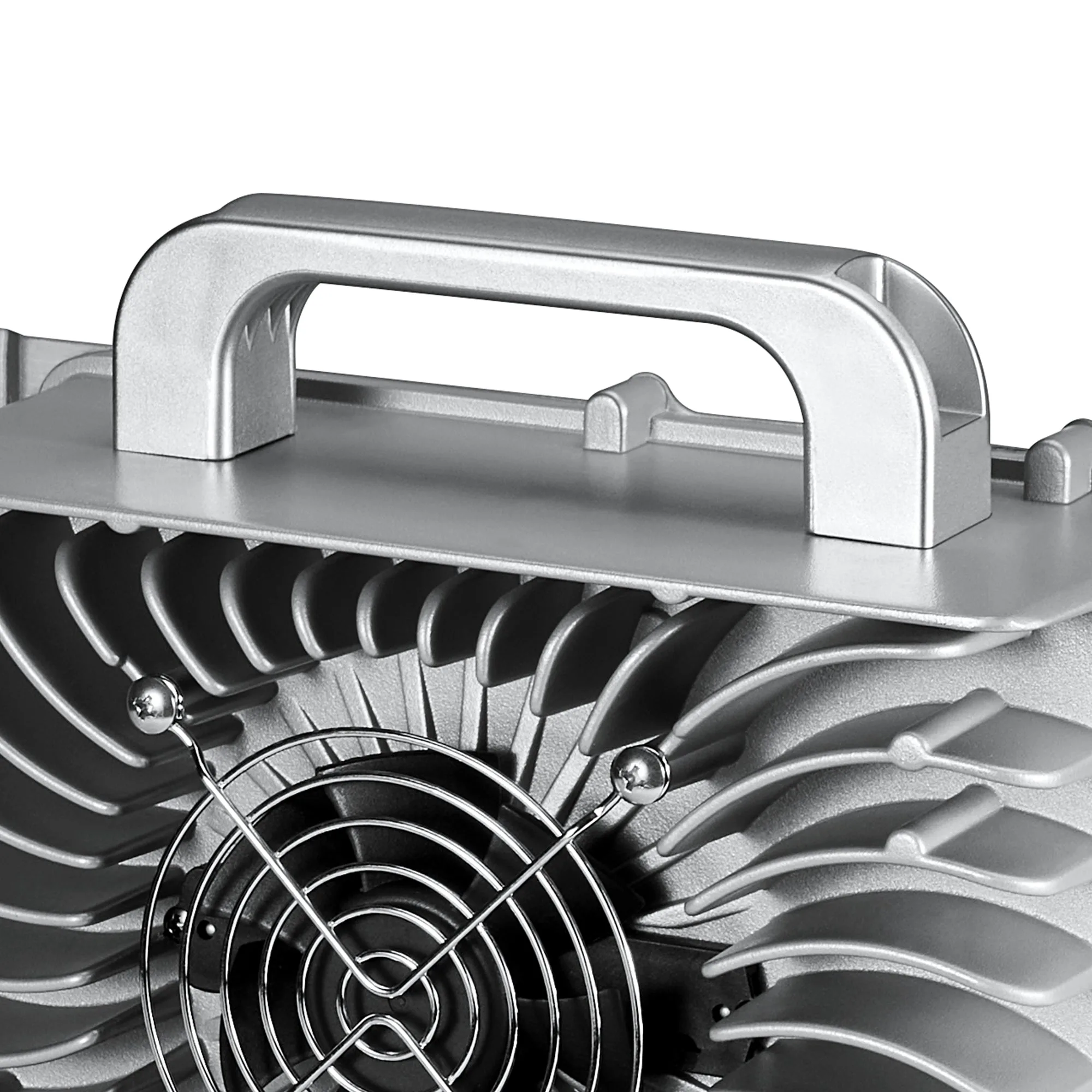

• Selectable 20A or 25A output with an active cooling fan for heat dissipation
• Universal AC input: 100-240V, 50/60Hz for global compatibility

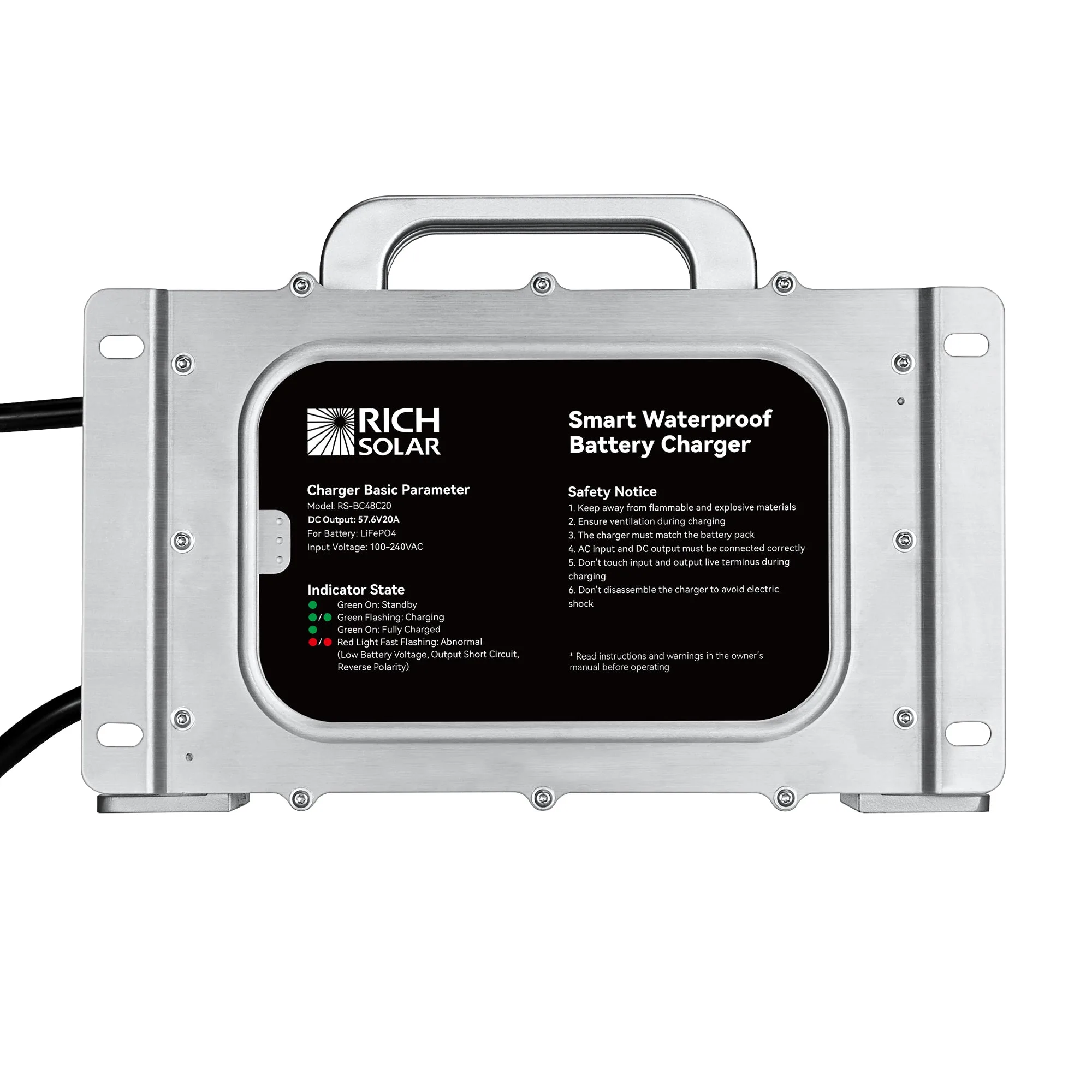

• Green (Always On): Standby / No Load
• Green (Flashing): Battery is Charging
• Green (Always On): Battery Fully Charged
• Red (Flashing): Charger Fault or Under Protection

Specifications

• DC Output Current: Max 20A (RS-BC48C20); Max 25A (RS-BC48C25)
• DC Output Voltage: 57.6V
• Battery Type: LFP Battery
• Input Voltage Range: 100-240V AC, 50/60Hz
• Peak Efficiency: 88-93%
• Charging Indicator: Two-Color LED
• Operating Temperature: 14°F to 113°F (-10°C to 45°C)
• Protections: Overvoltage, Overcurrent, Short-Circuit, Reverse Polarity, etc.
• Enclosure Material: Die-Cast Aluminum
• Waterproof: IP67 Rated
• Weight: 9.5 lb

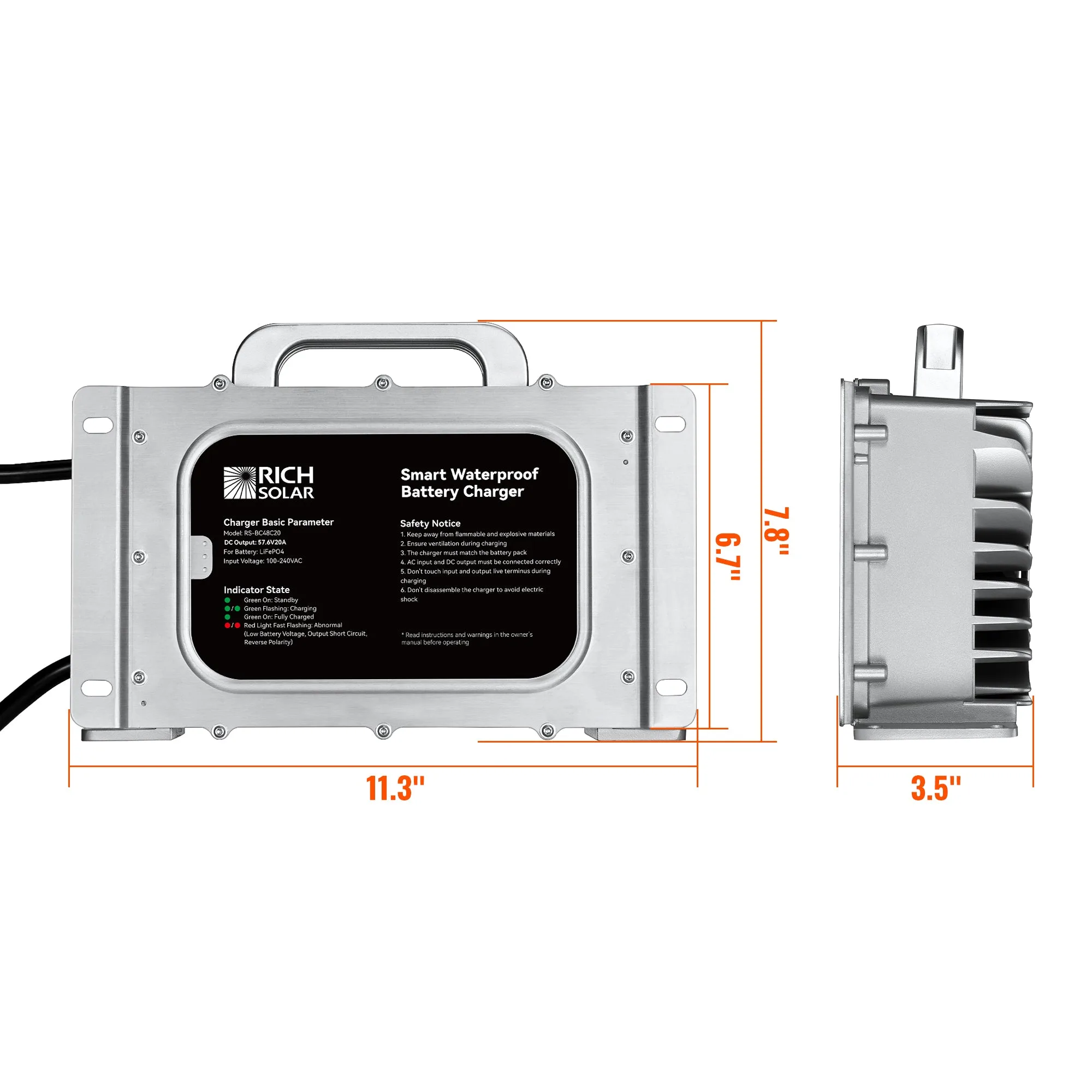

• Dimensions: 11.3 × 7.8 × 3.5 in
