Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A
Wiring & Connectors

Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

SKU: RS-SC10F
$15.99 / Each
✓ In Stock (25 available)

Features Fuse Can be replaced.

View Kit Bundles
🌾

Why Buy This from AOG

✓Authorized dealer — genuine product, backed by the manufacturer's warranty
✓Personal service from a small, family-run business that knows and serves the Plain & off-grid community — not a faceless call center
✓Chosen to last, not to be the cheapest — built for years of real use
✓Curated for true off-grid living, not stacked on a big-box shelf

Need something else too?

Solar Panels | Kits & Bundles | Batteries | Inverters | Charge Controllers | Power Converters | DC-DC Chargers | Chargers | Solar Racking & Mounting | Off-Grid Appliances | Lighting & Accessories | Monitoring & Accessories | Parts & Repair | Misc | Power Controllers

Shipping Info
Weight: 0lb 3oz
Dimensions: 0.00" × 0.00" × 0.00"

Ships to the lower 48 states. See our Shipping & Returns policy before you buy.

Key Features

• Fuse Can be replaced.

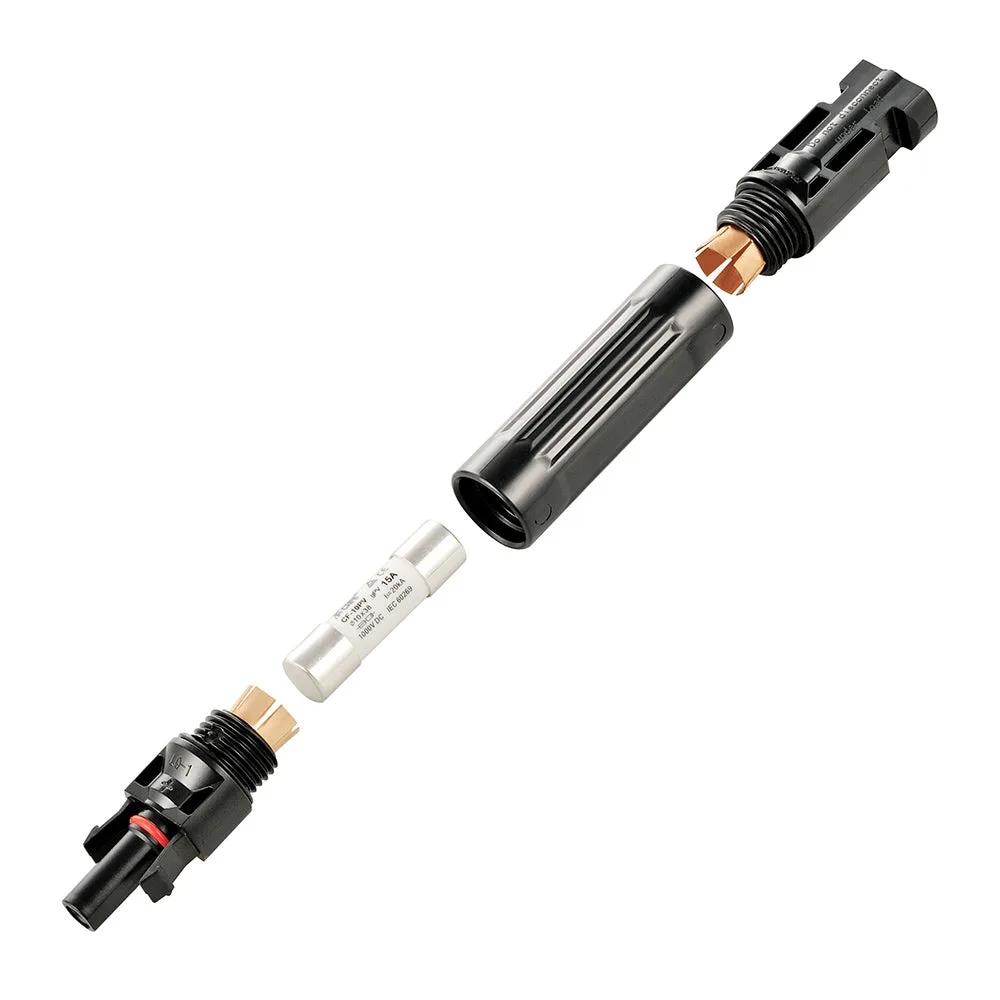

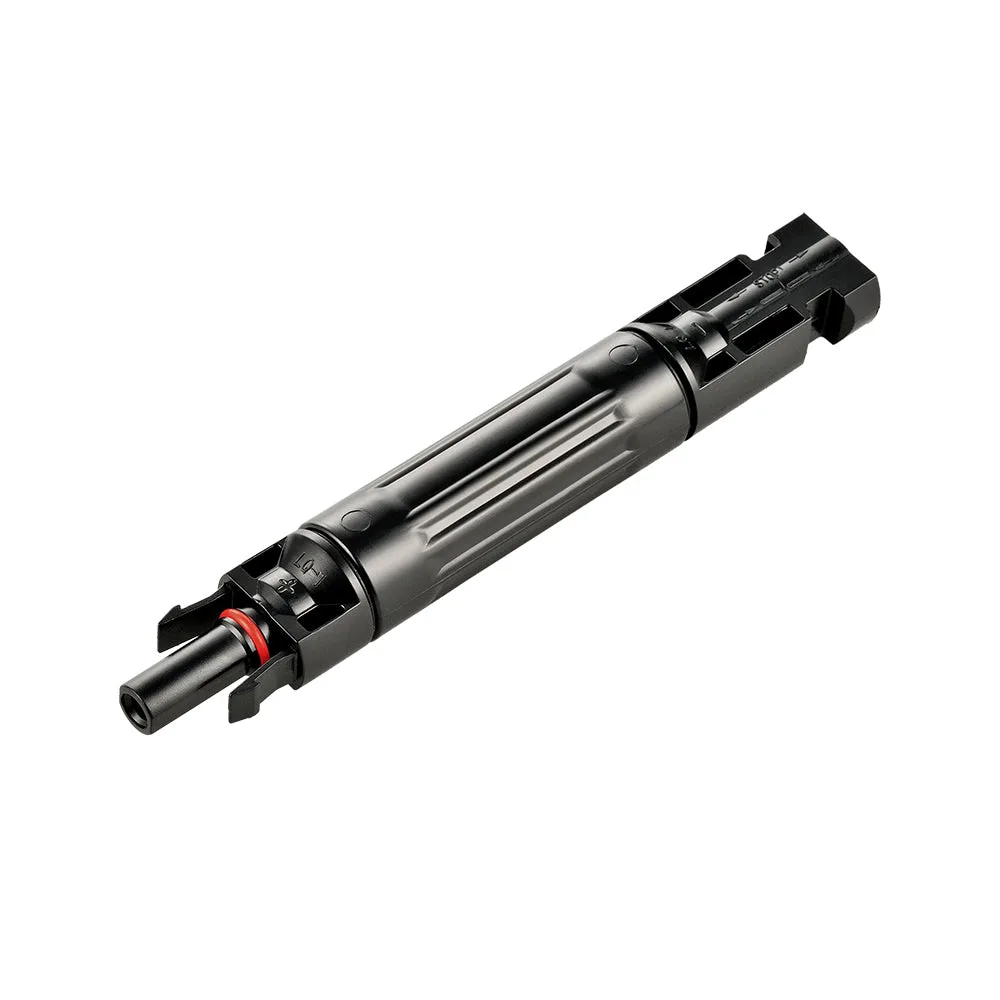

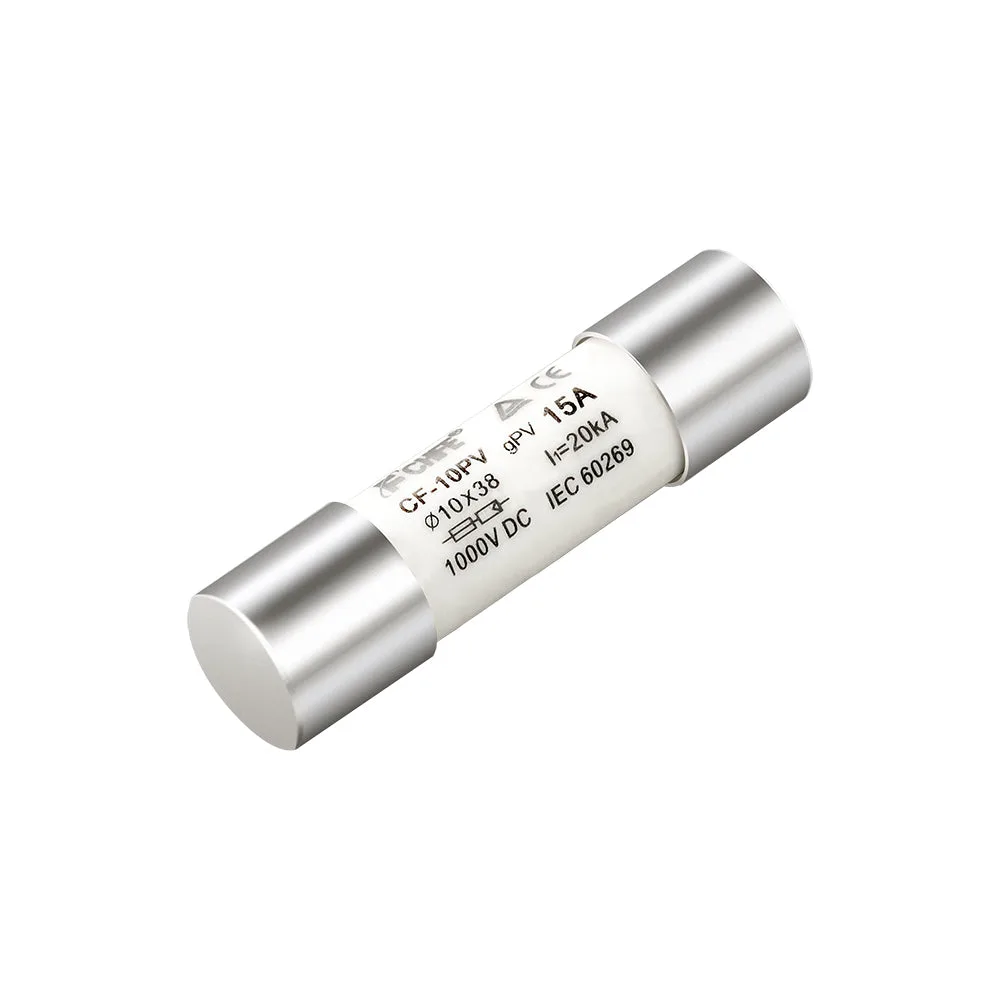

• 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
• Compatible with PV cables of different insulation diameters.
• Designed for a wide range of DC applications.
• Simple plug-and-play.
• Auto-lock equipment of male and female points renders connections easy and reliable.
• Waterproof fuse holder - IP67 Class Protection.
• Insulation material PPO.
• High current-carrying capacity.
• Prevent large currents from damaging the solar panels.
• Designed to provide complete single-circuit protection to your solar power array.
• Protection Class II.
• Connector adopts touch and insertion of reed with inner-knob type.
• Purchase this product for extra protection on your system.

Specifications

• Rated Current: 10A/15A/20A/30A
• Degree of Protection: IP2X/IP67
• Rated Voltage: 1000 V DC
• Flame Class: UL94-V0
• Test Voltage: 6000V (50Hz, 1 min)
• Safety Class: II
• Overvoltage Category: CATIII
• Suitable Connector: Solar Connector
• Contact Resistance of Plug Connector: 1mΩ
• Insertion Force / Withdrawal Force: ≤50N/≥50N
• Contact Material: Copper, Silver Plated
• Insulation Material: PPO
• Temperature Range: -40 to +257°F
