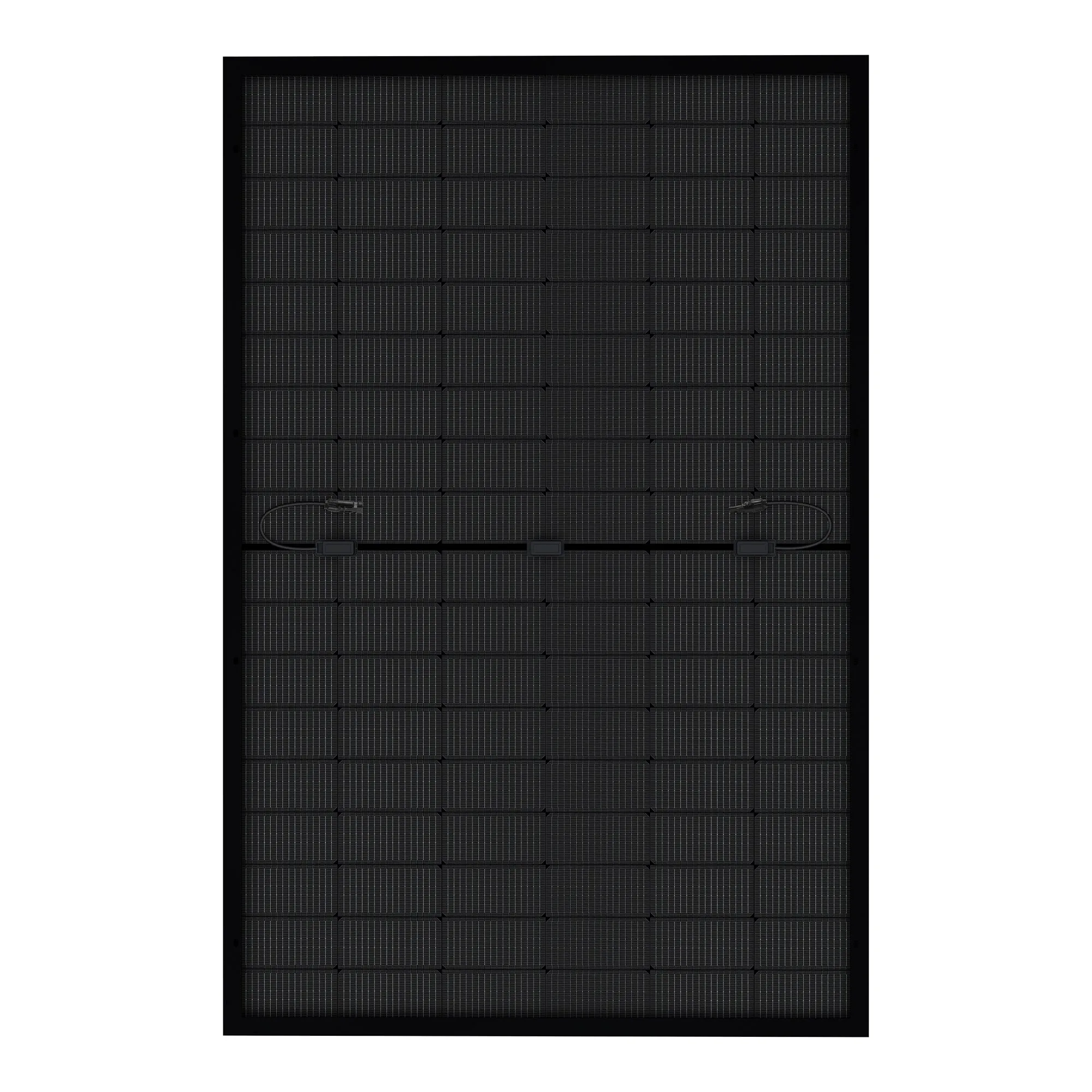

MEGA 430 BIFACIAL | 430W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified

• 24V off-grid solar panel.
• 14-busbar N-Type TOPCon cells with up to 25.1% efficiency.
• Excellent IAM and low-light performance for reliable energy production.
• Bifacial design delivers up to 25% additional rear-side power gain, depending on surface albedo.
• 108-cell configuration delivers a reliable 430W output.
• 2.0 mm front and rear tempered glass maximizes durability and bifacial performance.
• Power tolerance 0 to +5W ensures at least the rated output.
• Excellent low-light performance on cloudy days and at dawn/dusk.
• PID-resistant and 100% EL-inspected to help prevent microcracks.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Ideal for residential, agricultural, and commercial off-grid.
(Installation)
• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• MC4 connectors with 4 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters
(Warranty)
• 25-year output warranty.
• 10-year workmanship warranty.
(Built-In Components)
• Panel Leads (Pair): 12 AWG, 4 ft each
• IP68-rated waterproof junction box
• IP67-rated waterproof solar connectors

• Peak Power: 430W
• Module Efficiency: 22.0%
• Max Power Voltage (Vmp): 31.9V
• Max Power Current (Imp): 13.5A
• Open Circuit Voltage (Voc): 37.4V
• Short Circuit Current (Isc): 14.7A
• Max Series Fuse Rating: 30A
• Maximum System Voltage: 1500VDC
• Number of Cells: 108 cells
• Front Glass: 2.0 + 2.0 mm Tempered Glass
• Frame Material: Anodized Aluminum Alloy
• Operating Temperature: -40°F to 185°F
• Dimensions : 67.8" × 44.7" × 1.2"
• Weight: 50.9 lb
