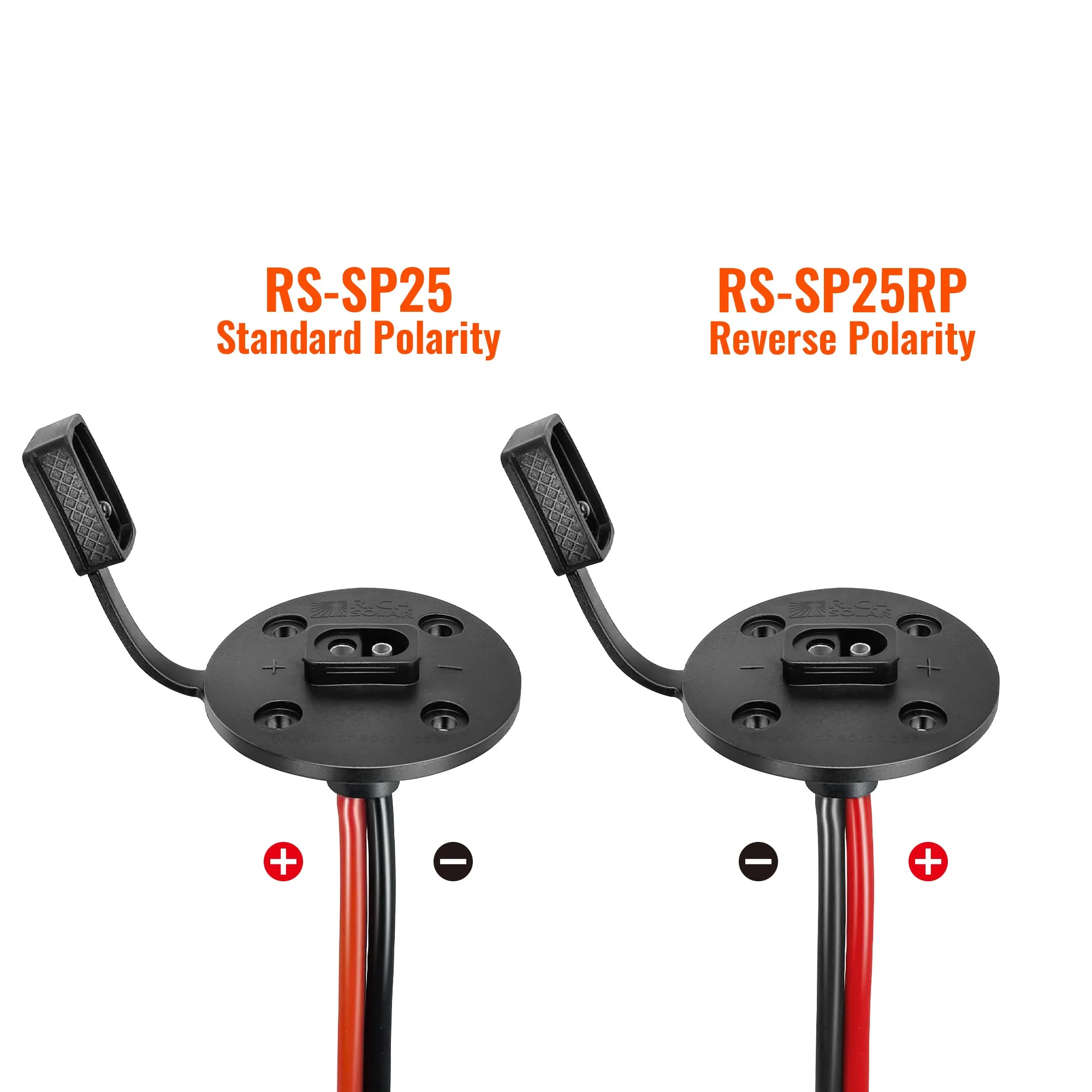

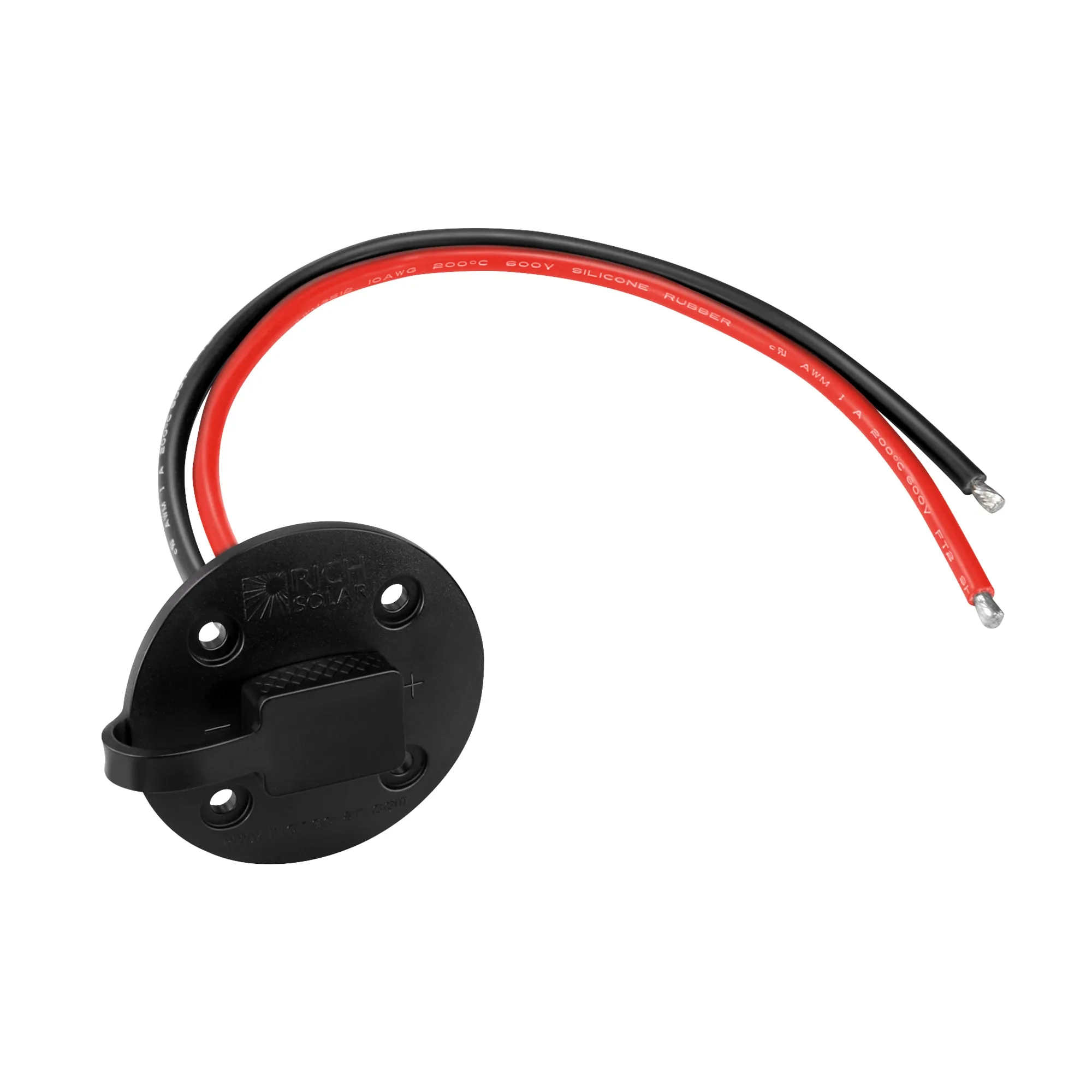

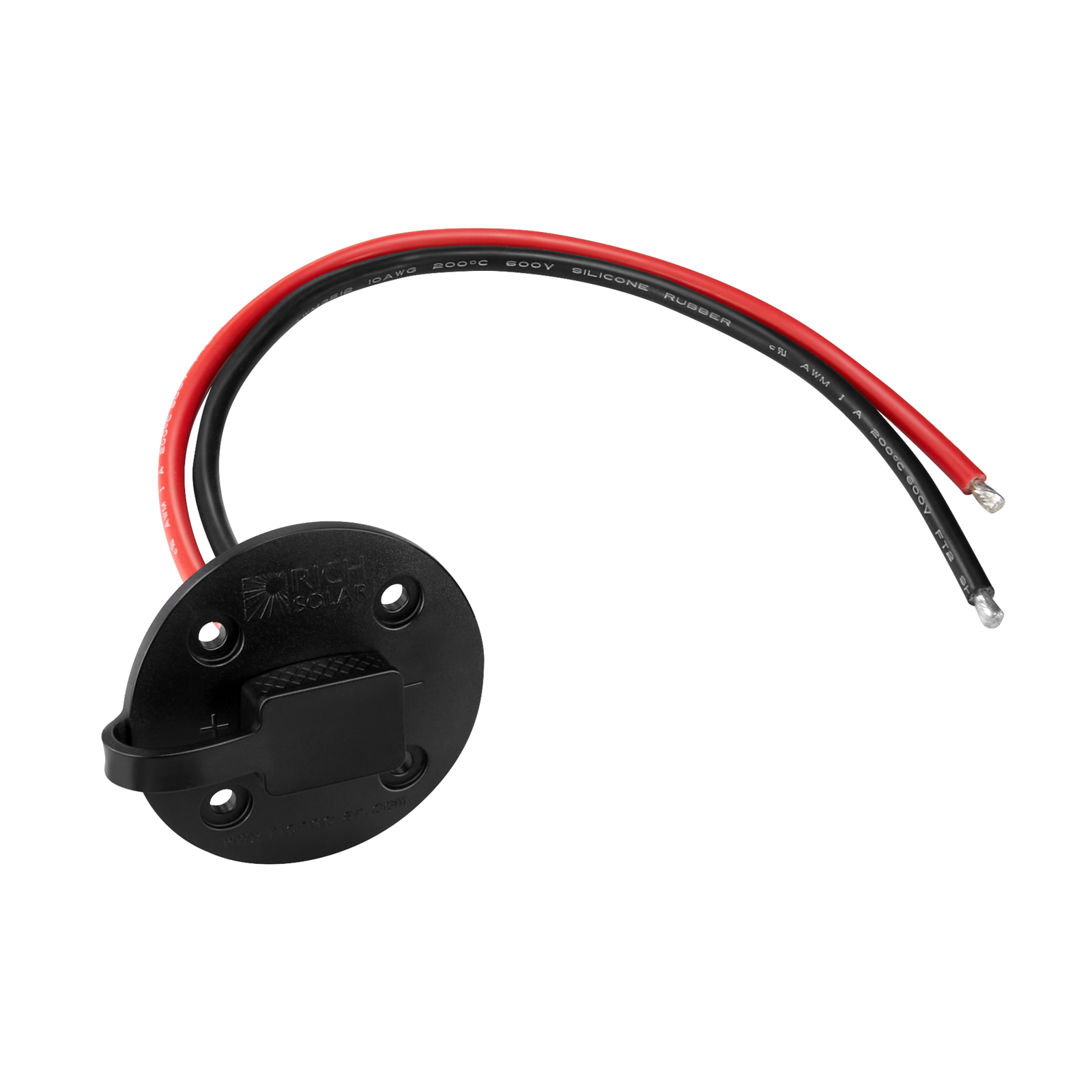

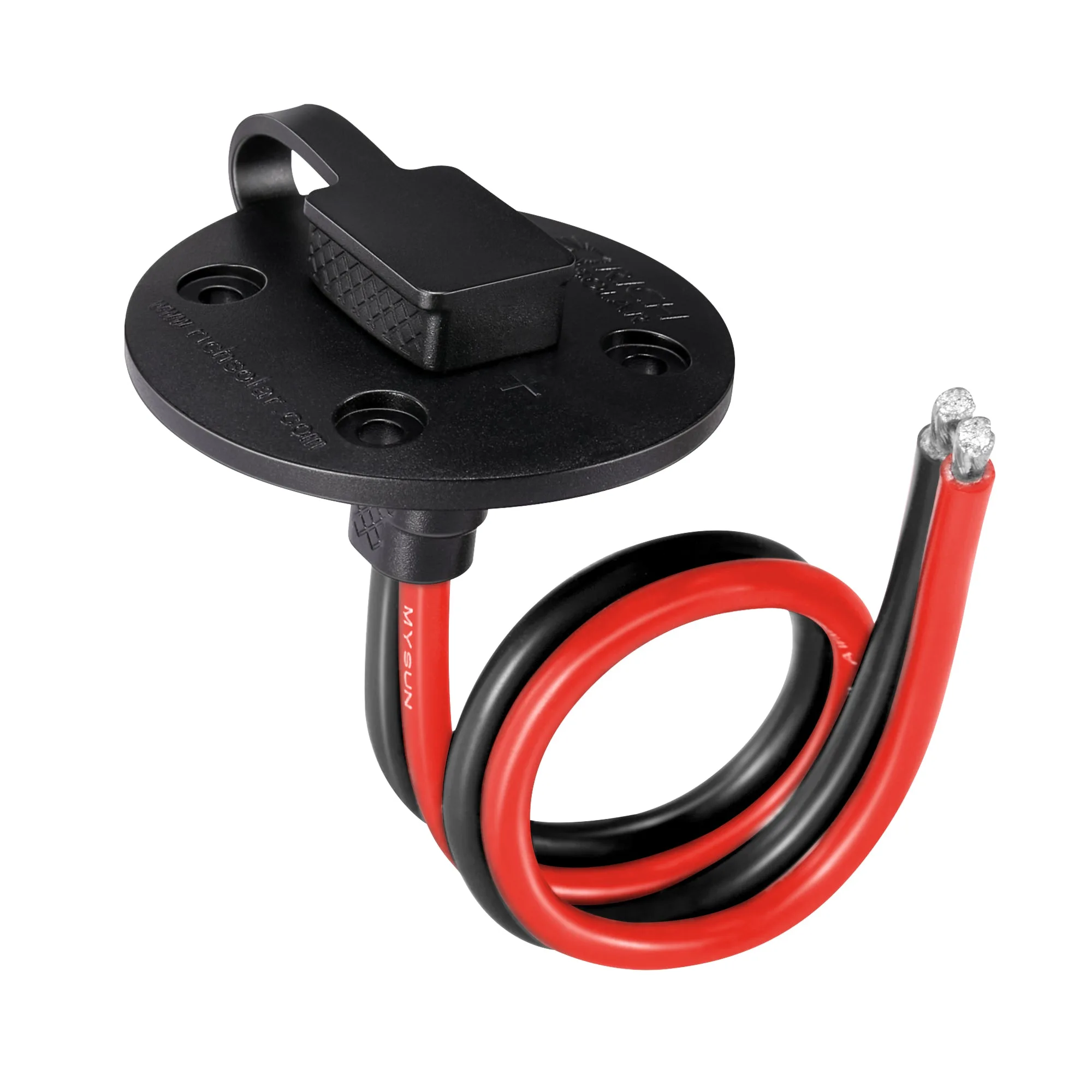

SAE Socket Sidewall Port with 10AWG Cable | 600V Heavy Duty Silicone Wire Harness | Quick Disconnect Power Connector for RV, Solar, Motorcycle
Wiring & Connectors

SAE Socket Sidewall Port with 10AWG Cable | 600V Heavy Duty Silicone Wire Harness | Quick Disconnect Power Connector for RV, Solar, Motorcycle

SKU: RS-SP25
$29.99 / Each
✓ In Stock (25 available)

Features 10AWG Pure Copper Wire: Delivers stable power with reduced heat and voltage loss SAE Quick Disconnect Design: Fast, secure, plug-and-play connection Sidewall Mount Socket

View Kit Bundles
🌾

Why Buy This from AOG

✓Authorized dealer — genuine product, backed by the manufacturer's warranty
✓Personal service from a small, family-run business that knows and serves the Plain & off-grid community — not a faceless call center
✓Chosen to last, not to be the cheapest — built for years of real use
✓Curated for true off-grid living, not stacked on a big-box shelf

Need something else too?

Solar Panels | Kits & Bundles | Batteries | Inverters | Charge Controllers | Power Converters | DC-DC Chargers | Chargers | Solar Racking & Mounting | Off-Grid Appliances | Lighting & Accessories | Monitoring & Accessories | Parts & Repair | Misc | Power Controllers

Shipping Info
Weight: 1lb 0oz
Dimensions: 0.00" × 0.00" × 0.00"

Ships to the lower 48 states. See our Shipping & Returns policy before you buy.

Key Features

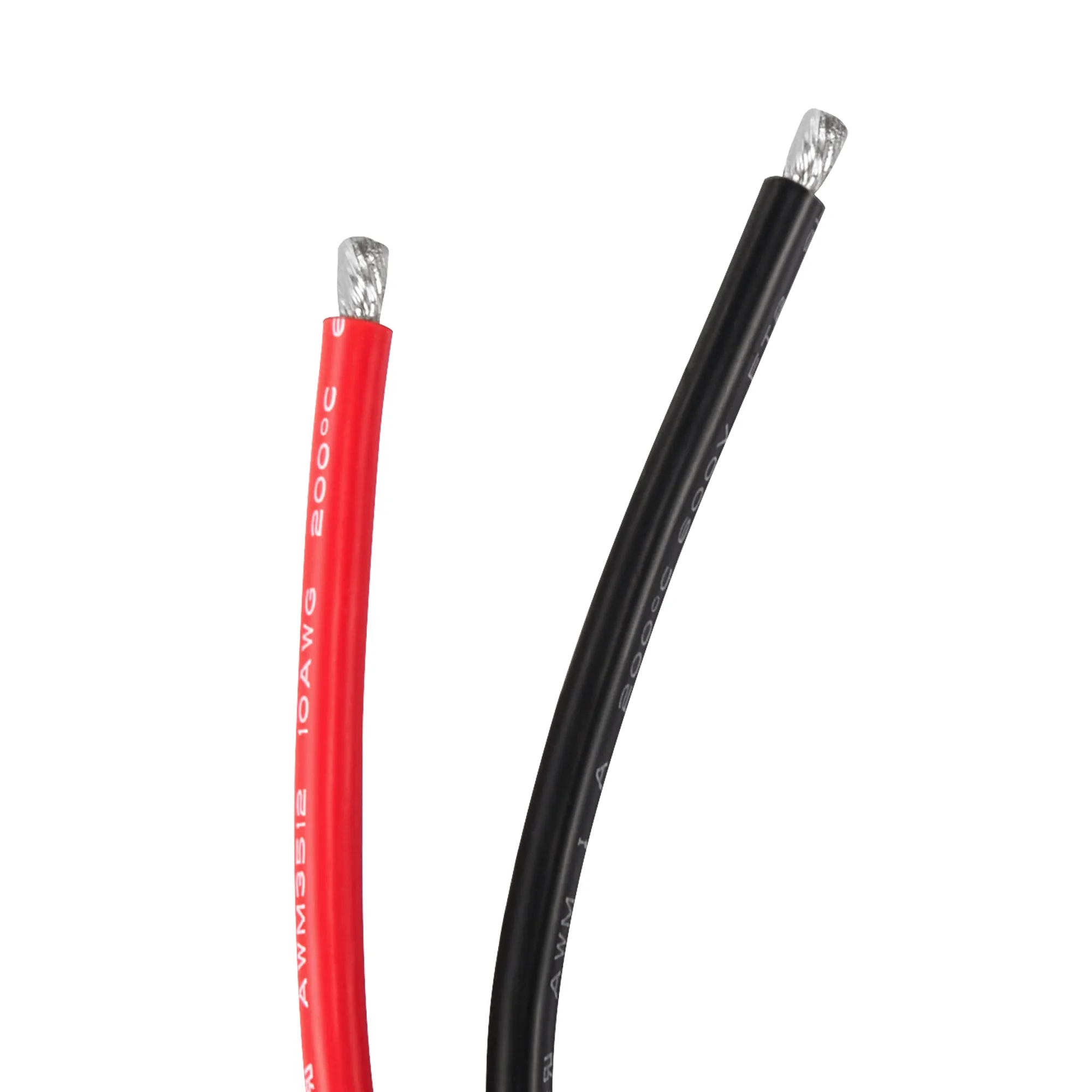

• 10AWG Pure Copper Wire: Delivers stable power with reduced heat and voltage loss
• SAE Quick Disconnect Design: Fast, secure, plug-and-play connection

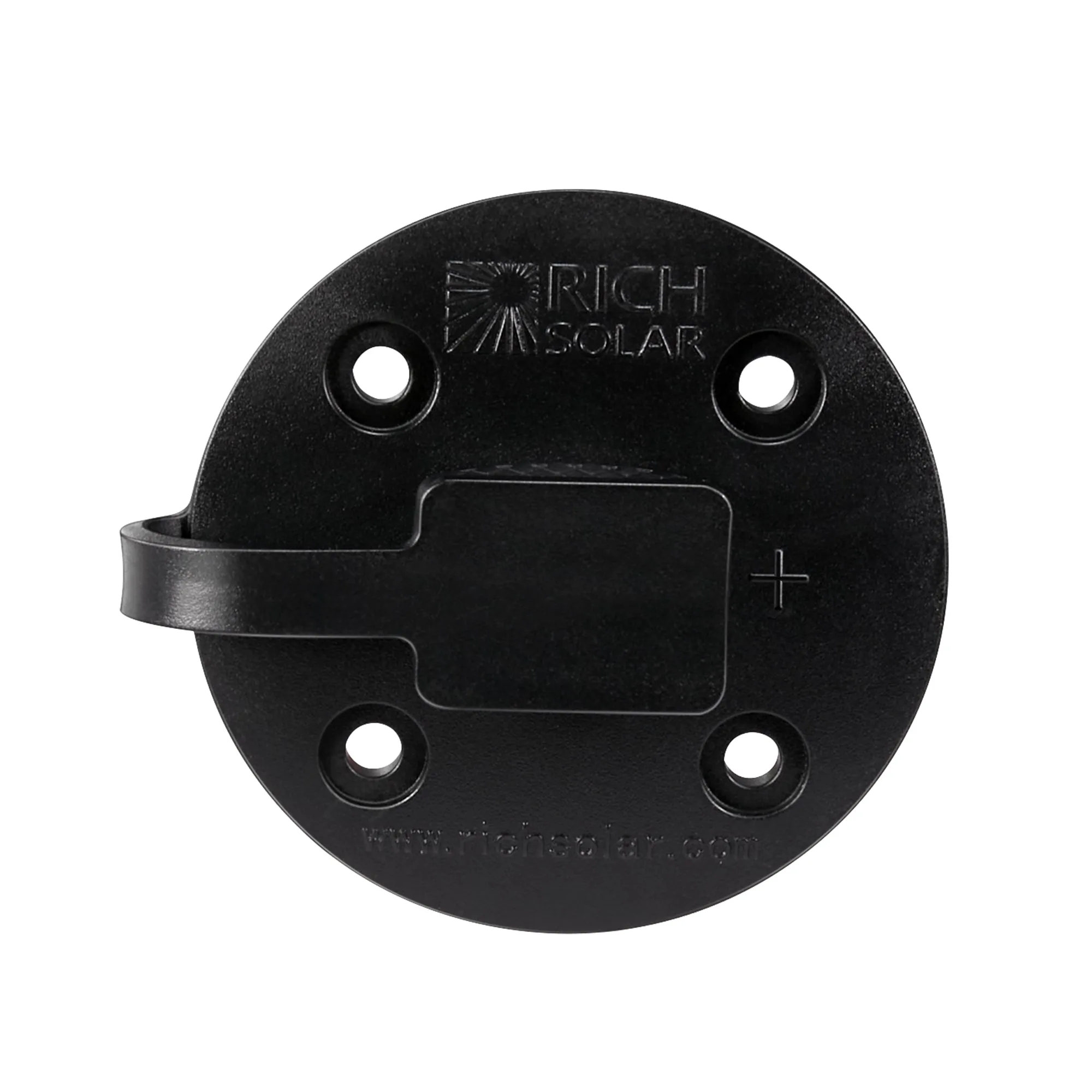

• Sidewall Mount Socket Port: Enables clean and secure panel or vehicle installation
• All-Weather Durability (-40°F to +392°F): Performs reliably in extreme heat and cold
• Dustproof and Waterproof Cap: Protects against rain and dirt, keeping the port dry
• Wide Compatibility: Ideal for solar panels, motorcycles, RVs, batteries, and more

Specifications

• Length: 1 ft
• Wire Gauge: 10AWG
• Conductor Material: 100% Copper
• Rated Voltage: 600V
• Rated Current: 45A
• Insulation: Silicone (cable); PVC (connector)
• Temperature Rating: -40°F to +392°F (Cable); -40°F to +194°F (Connector)
